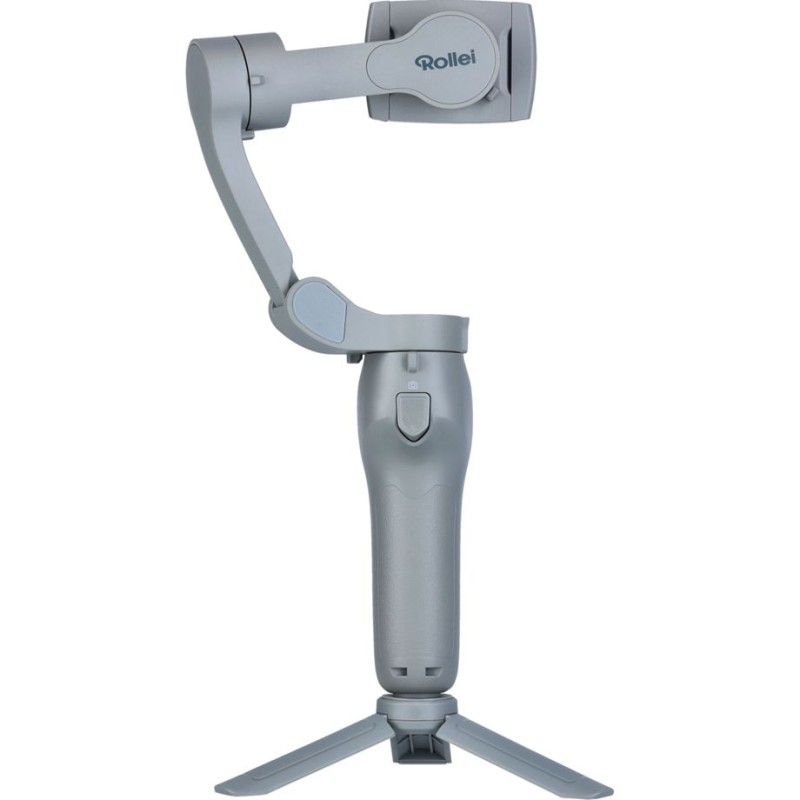

Steady Butler Mobile 3 SE Gimbal Rollei

Specifications

Mechanical Parameters

1. Mechanical Angle: Heading – 320°; Roll – 345°; Pitch – 320°.

2. Controllable Angle: Heading – 300°; Roll – 325°; Pitch – 80°.

3. Maximum Smartphone Weight: 280 g.

4. Maximum Smartphone Thickness: 11 mm.

5. Supported Smartphone Width: 55–90 mm.

Electrical Parameters

1. Wireless Connection: Bluetooth Low Energy (BLE) 5.2.

2. Mobile Application: Gimbal Show.

3. Supported Operating Systems: Android 9.0 or later; iOS 11 or later.

4. Bluetooth Device Name: M0X-XXXXXX.

5. Wireless Remote Control Range: 10 m.

6. Charging Port: USB Type-C.

7. Maximum Control Speed: 120°/s.

8. Battery Rated Energy: 11.1 Wh (3000 mAh).

9. Charging Time: 1.5 hours.

10. Rated Input: 5 V / 2 A.

11. Maximum Charging Current: 2 A.

12. Operating Current: Approximately 320 mA.

13. Operating Time: 6 hours.

14. Power Consumption: 2.0 W.

15. Rated Voltage: 3.7 V.

Gimbal Operating Modes

1. Half-Follow Mode – heading axis follows movement.

2. Full-Follow Mode – heading and pitch axes follow movement.

3. Inception Mode – activated by triple-clicking the trigger button.

4. Full-Lock Mode – all three axes are locked.

5. POV Mode – all three axes follow movement.

6. Half-Follow Mad Dog Mode – faster response in half-follow mode.

7. Full-Follow Mad Dog Mode – faster response in full-follow mode.

Additional Features

1. Shortcut Keys: Start photo/video recording; switch between photo and video modes; triple-click to switch between front and rear cameras (within the app).

2. Tracking Modes: Face recognition and object tracking.

3. Operating Principle: Gyroscope.

4. Gesture Control: Supported.

5. Selfie Stick Mode: Supported.
